Product introduction

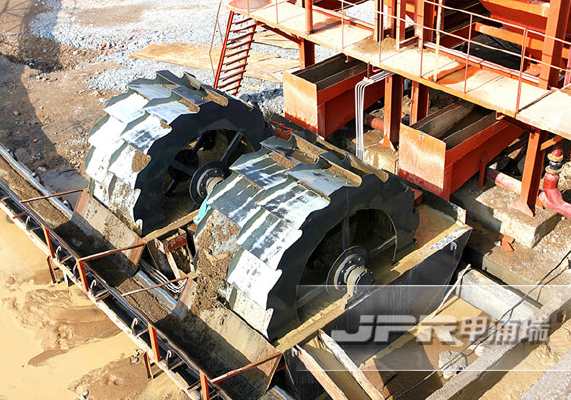

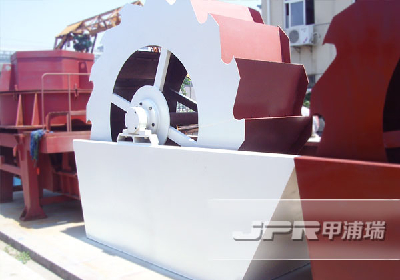

XSD Series Sand Washing Machine is a kind of wheeled washing equipment, and can clean and separate the dust and powder from the sand. Its new seal-structure and reliable driving device can make sure the cleaning effective and a kind of high efficiency sand washing equipment matched with the Sand Making Machine.
Performance features
1.Reasonable structure, high efficiency, and little sand loss during washing.
2.Compared with the spiral sand washing machine, the loss of medium and fine sand as well as powder is minimal, so the grade and fineness modulus of washed building sand can meet the required standard.
3.Drive Bearing device is separated from water and materials, which is greatly to avoid the bearing damaged due to soaking, touching sand and other pollutants.
- Place of Origin: SHANGHAI
- Brand Name: JPR
- Model Number: XSD
Technical parameters
| Model | XSD2610 | XSD2816 | XSD3016 | XSD3620 |
| Wheel Diameter(mm) | 2600 | 2800 | 3000 | 3600 |
| Input Size(mm) | ≤10 | ≤10 | ≤10 | ≤10 |
| Capacity(t/h) | 20-50 | 30-70 | 50-100 | 80-150 |
| Model of Motor | Y160L-8 | Y180L-8 | Y200L-8 | Y225S-8 |
| Motor Power(kW) | 7.5 | 11 | 15 | 18.5 |
| Water Consumption(t/h) | 10-30 | 10-40 | 10-60 | 20-110 |
| Weight(t) | 2.7 | 5.5 | 6.1 | 9.7 |
| Overall Diamension(mm) | 3254×2060×2622 | 3810×2820×2883 | 3810×2820×3083 | 4456×2479×3688 |
