- Place of Origin: SHANGHAI
- Brand Name: JPR
- Model Number: PCL

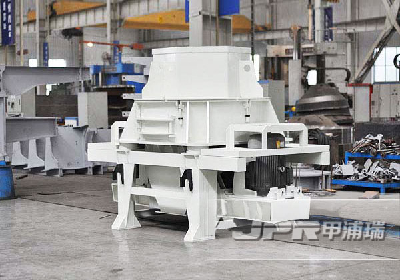

Product introduction

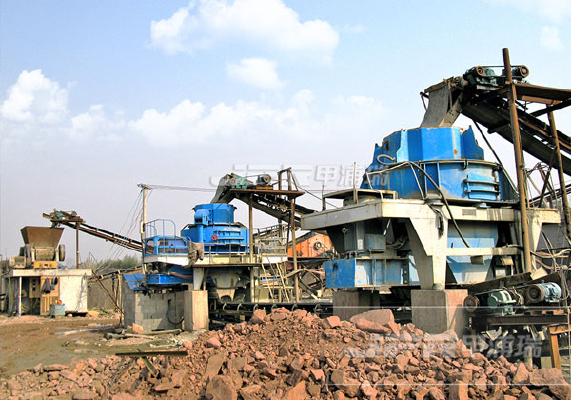

The impact crusher is much more professional than other crushers in crushing hard and anti-abrasion materials such as carborundum, sintered bauxite, magnesite and so on. The Impact Crusher is usually used as sand making machine in the sand washing plant.
Performance features
1. Simply structure, low investment & High efficiency.
2. Working noise < 75db, and little dust pollution.
3. Scaleboard of the impeller is easy in maintenance and durable.
4. Appliable to fine and coarse grinding.
5. Slightly influenced by the moisture content of the material. The max moisture content is 8%.
6. Suitable for crushing materials of middle and high hardness.
7. Cubic shaped end products, high density of piling up and low iron pollution.
Working principle
The materials fall into the crusher and be divided into two parts. One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller. The two parts materials bump into each other at a high speed and are crushed in this way under the centrifugal force. The end products go out from the bottom of the machine, and users can get the required products size after materials are screened by the vibrating screen.
- Place of Origin: SHANGHAI
- Brand Name: JPR
- Model Number: PCL
Technical parameters
Model | Max Input Size(mm) | Capacity(t/h) | Wheel Speed(r/min) | Model of Motor | Motor Power(kW) | Overall Diamension(mm) |
PCL-600 | 26 | 12-30 | 2000-2600 | Y200L1-2 | 2×30 | 2800×1460×2030 |
PCL-600B | 26 | 12-50 | 2000-2600 | Y200L2-2 | 2×37 | 2800×1460×2030 |
PCL-750 | 35 | 26-65 | 1500-2500 | Y225M-4 | 2×45 | 3300×1800×2440 |
PCL-900 | 35 | 55-120 | 1300-1700 | Y250M-4 | 2×75 | 3750×2120×2660 |
PCL-900B | 40 | 60-150 | 1000-1450 | Y280M-4 | 2×90 | 3750×2120×2660 |
PCL-1050 | 40 | 100-160 | 1000-1700 | Y315S-4 | 2×110 | 4480×2450×2906 |
PCL-1250 | 40 | 100-260 | 950-1200 | Y315M-4 | 2×132 | 4563×2650×3176 |
PCL-1350 | 60 | 160-360 | 800-1200 | Y315L2-4 | 2×200 | 5340×2940×3650 |
