Product introduction

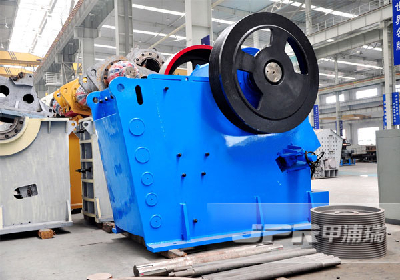

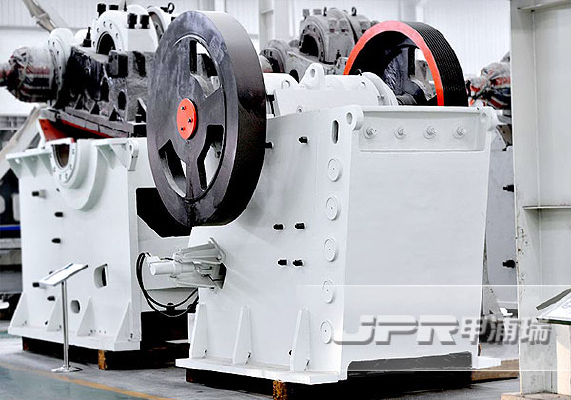

PE series jaw crusher belongs to a common crushing machine in the process of mining. One of our main products,Jaw Crusher is designed by engineers with large reduction ratio,even granularity,simple structure, reliable operation,convenient maintenance,low cost.
Our Jaw Crusher are of 6 different models, which can meet most crushing requirements in primary and secondary crushing. As per Feedback, our experts will make continuous improvements on our products to meet customers' changing needs.
Performance features
1. Firm structure, stable performance, large capacity, even producing granularity.
2. With the increase of production, our jaw crusher can greatly reduce the operating costs.
3. Convenient maintenance and economical running expense.
4. The large feed opening and force feeding action from the inward and downward eccentric movement of the swing jaw indicates that our jaw crusher can increase the capacity.
Working principle
The motor drives the belts and the belt wheels, and make the movable jaw up and down by the eccentric shaft. When the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, and the materials can be crushed.
When the movable jaw rises, the between the fixed jaw and the movable jaw becomes bigger; and the movable jaw plate leaves from the fixed jaw by the function of the tension rod and the spring. And then the crushed materials are discharged from the lower outlet of the crushing cavity.
- Place of Origin: SHANGHAI
- Brand Name: JPR
- Model Number: PE
Technical parameters
Model | Feeder Size(mm) | Input Size(mm) | Output Size(mm) | Capacity(t/h) | Motor Power(kw) | Weight(t) | Overall Diamension(mm) |
PE250×400 | 400×250 | 200 | 20-50 | 5-20 | 15 | 3 | 1430×1310×1340 |
PE400×600 | 400×600 | 350 | 40-100 | 15-60 | 30-37 | 7 | 1700×1732×1653 |
PE500×750 | 500×750 | 425 | 50-100 | 40-110 | 45-55 | 12 | 2035×1921×2000 |
PE600×900 | 600×900 | 480 | 65-160 | 90-180 | 55-75 | 17 | 2290×2206×2370 |
PE750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 90-110 | 29 | 2655×2302×3110 |
PE900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 110-132 | 58 | 3800×3166×3045 |
PE1000×1200 | 1000×1200 | 850 | 200-300 | 280-560 | 110-160 | 69 | 5350×4280×3050 |
PE1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 160-220 | 100.9 | 6380×5310×3710 |
PE1500×1800 | 1500×1800 | 1200 | 210-360 | 520-1100 | 280 | 132 | 7460×6235×4249 |
PEX150×250 | 150×250 | 125 | 10-40 | 1-3 | 5.5 | 1.5 | 896×745×935 |
PEX150×750 | 150×750 | 125 | 18-48 | 5-16 | 15 | 3.8 | 1200×1500×1200 |
PEX250×750 | 250×750 | 210 | 25-60 | 15-30 | 22-30 | 5 | 1667×1545×1020 |
PEX250×1000 | 250×1000 | 210 | 25-60 | 15-50 | 30-37 | 7 | 1550×1964×1380 |
PEX250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37-45 | 8.5 | 2192×1900×1950 |
PEX300×1300 | 300×1300 | 250 | 20-90 | 30-90 | 55-75 | 11.5 | 1750×2320×1724 |
