Product introduction

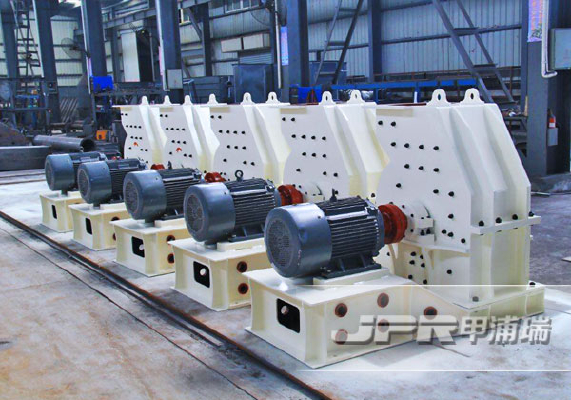

This hammer crusher is mainly component of casing, rotor, hammers and bars. The case is divided into two parts: up and down, which is connected by welding the cut steel; other parts are connected by screws. The one inside of case is high manganese steel lining board, which is easy to change when wore out.
There are several hammers in the spindle, which make up of rotor together with turntable and wear hammer shaft. It works through motor and V-belt to drive spindle and rotor rotating, so that centrifugal force producing by the hammer rotating spread out.
Then when the big material was put into crushing chamber, it was crush by the high speed hammer. Afer those process, the standard material was screen out by down bar and non-standard one was left on the crushing chamber and crush again. In order to avoid clogging, humidity of crushed material should below 10%-15%.
Performance features
1.It is simple structure, safe, dependable, easily mounting and convenient operation, low vibration, high output.
2.It is widely used for grinding granular materials, such as corn, sorghum, wheat, soybean, etc.
3.Steel plate welded structure; motor and rotor are mounted on same base plate.
4.Pin coupling direct connection driving; Rotor passes accurate dynamic balancing test.
5.Safe operation door to ensure it is locked when operation.
6.The inlet is on top of machine for easy operation.
Working principle
The host drives the main shaft through the motor and V-belt driven spindle to rotate the rotor, generating the centrifugal force, then driving all hammers stretch around. The bulks of material feed into the crushing chamber, will be crushed by the hammers at a high-speed movement.
The broken material requested will be passed the grizzly bars at the lower part and discharged, the unbroken rest will be left in the chamber to be crushed repeatedly by the hammers and iron plates until it can reach the requested standard. To avoid clogging, the water content of the material to be crushed not more than 5%.
- Place of Origin: SHANGHAI
- Brand Name: JPR
- Model Number: PC
Technical parameters
Model | PC400x300 | PC600x400 | PC800x600 | PC1000x800 | PC1200x1000 |
Rotor Diameter(mm) | 400 | 600 | 800 | 1000 | 1200 |
Rotor length(mm) | 300 | 400 | 600 | 800 | 1000 |
Rotor Speed(r/min) | 1100 | 980 | 980 | 980 | 650 |
Feeding Size(mm) | <200 | <250 | <250 | <300 | <400 |
Finished Size(mm) | 2~6 | 5~15 | 5~20 | 5~20 | 5~25 |
Capacity(t/h) | 3~8 | 8~20 | 20~50 | 50~100 | 100~200 |
Motor power(kW) | 11~15 | 18.5~22 | 45~55 | 75~90 | 132~160 |
Hanmer Qty(pcs) | 16 | 20 | 24 | 30 | 14 |
Weight(t) | 0.75 | 1.6 | 3.6 | 8.8 | 13.1 |
Overall dimension(mm) | 1367*680*1022 | 1713*1000*1300 | 2300*1390*1735 | 3072*1720*2121 | 3616*2226*2175 |
